شرکت هوشمندافزار عرضه کننده بازوهای صنعتی UNIVERSAL ROBOTS در ایران

برترین ربات صنعتی همکار در جهان



هزاران بازوی همکار Universal Robots در سراسر جهان کنار انسان‌ها بدون نیاز به حصار ایمنی بی‌هیچ مشکلی کار می‌کنند.



با Universal Robots تقریباً همه چیز را اتوماتیک کنید

ربات‌های همکار (کوبوت) یونیورسال روبوتز با سه نوع مختلف به راحتی با انواع محیط‌های تولید یکپارچه می‌شوند‌.
با دارا بودن شش مفصل و انعطاف‌پذیری فراوان در ناحیه عملکرد، بازوهای صنعتی همکار Universal Robots برای تقلید حرکات مختلف دست یک انسان طراحی شده‌اند.

شما می‌توانید یکی از ربات‌های همکار (COBOT) که بیشترین همخوانی با نیازهای شما را دارد انتخاب نمایید.

بازوهای رباتيک همکار UNIVERSAL ROBOTS

UR3 بازوی رباتیک
UR5 بازوی رباتیک
UR10 بازوی رباتیک
شعاع حرکتی 500mm / 19.7ins 850mm / 33.5ins  1300mm / 51.2ins
قابلیت حمل بار 3kg / 6.6lbs
5kg / 11lbs 10kg / 22lbs
وزن 11kg / 24.3lbs
18.4kg / 40.6lbs 28.9kg / 63.7lbs
ابعاد پایه 128mm / 4.6ins
149mm / 5.9ins 190mm / 7.5ins
تعداد محور 6 6 6

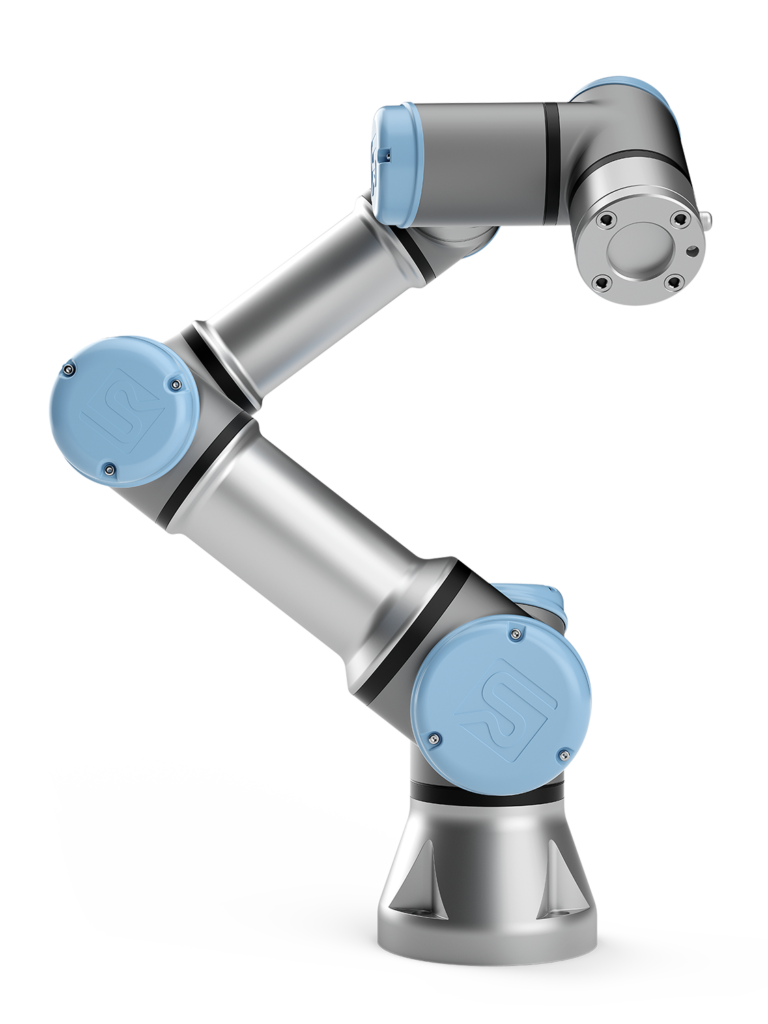

بازوی همکار صنعتی UR3

Ultra flexible table-top robot


UR3 is Universal Robot's new, smaller collaborative table-top robot for light assembly tasks and automated workbench scenarios. The compact table-top robot weighs only 24.3 lbs (11 kg), but has a payload of 6.6 lbs (3 kg), 360-degree rotation on all wrist joints and infinite rotation on the end joint. These unique features make UR3 the most flexible, lightweight, collaborative table-top robot to work side-by-side with employees in the market today. It’s an ideal choice for applications that require 6-axis capabilities where size, safety and costs are critical.
The UR3 collaborative robot is an optimal assistant in assembly, polish, glue, and screw applications requiring uniform product quality. The new table-top robot can also be used in a separate work station mounted on the table, picking, assembling and placing parts in optimized production flows. Because of its compact form and easy programming, it’s easy to switch it between tasks to meet agile manufacturing needs making total cost of ownership low and payback period ultra fast.
The UR3 robot applications span manufacturing industries from medical devices to circuit boards and electronic components

Did you know?
The UR3 robot is built with the same proven collaborative technology as Universal Robot's UR5 and UR10 robot arms. All three collaborative robots feature the same safety system and 0.1 mm repeatability. UR3 has a default force sensing of 150 Newton but can be set to stop if it encounters a force as low as 50 Newton in its route.

UR3 table-top robot in short :
- Automate tasks up to 6.6 lbs (3 kg)
- Reach radius of up to 19.7 in (500 mm)
- Fastest payback in the industry

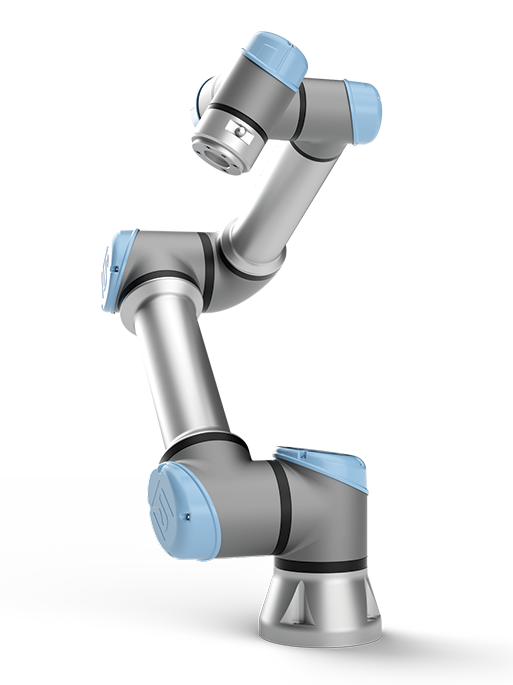

بازوی همکار صنعتی UR5

A highly flexible robot arm


The lightweight, flexible and collaborative industrial robot - UR5 - from Universal Robots lets you automate repetitive and dangerous tasks with payloads of up to 5 kg. The UR5 is ideal to optimize low-weight collaborative processes, such as: picking, placing and testing.
With a working radius of up to 850mm, the UR5 collaborative robot puts everything within reach, freeing up your employees’ time to add value to other stages of the production.
The UR5 from Universal Robots is very easy to program, offers fast set up, is collaborative and safe, and like Universal Robot's other collaborative robots, offers one of the fastest payback times in the industry.

UR5 robot in short :
- Automate tasks up to 5 kgs (11 lbs)
- Reach radius of up to 850 mm (33.5 in)
- Fast payback time

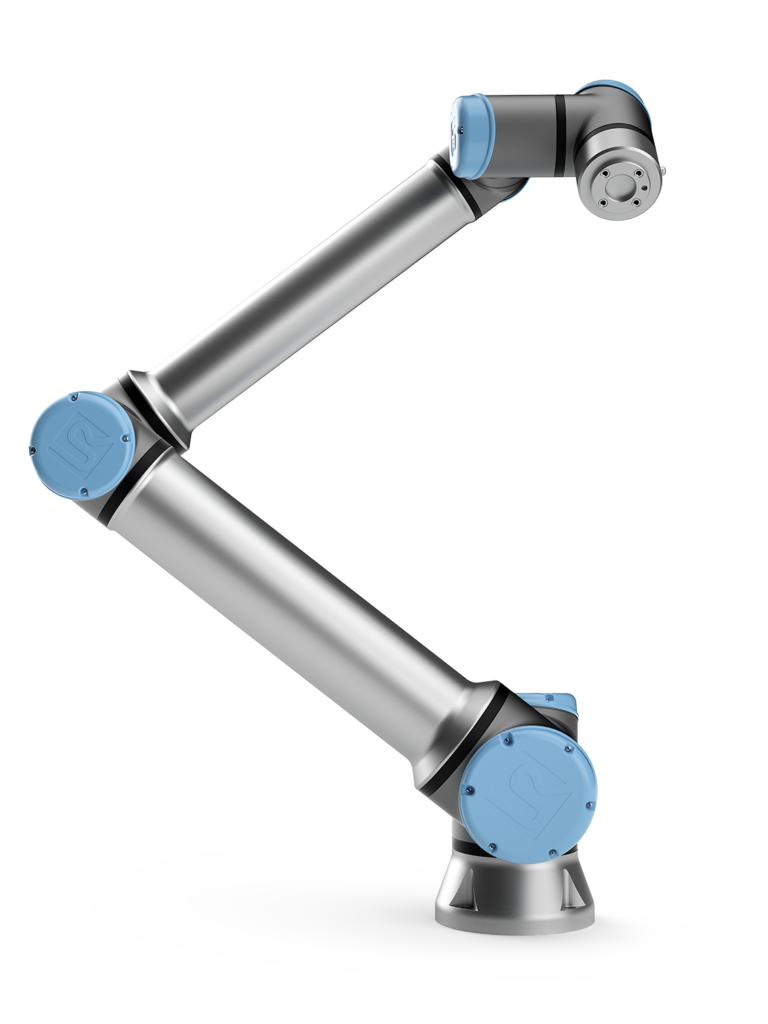

بازوی همکار صنعتی UR10

A collaborative industrial robot


The Universal Robots UR10 is Universal Robot's largest industrial robot arm, designed for bigger tasks where precision and reliability are still of paramount importance. With the indstrial robot arm - UR10 - you can automate processes and tasks that weighs up to 10 kg.
Heavier-weight collaborative processes, such as: packaging, palletizing, assembly and pick and place are all well suited to the UR10 industrial robot. With a reach radius of up to 1300mm, the UR10 industrial robot is designed to be more effective at tasks across a larger area. You can therefore save time on production lines where distance can be a factor.

Did you know?
The Universal Robots UR10 is easy to program, offers fast set up, is collaborative and safe, and like Universal Robot's other collaborative robots, offers one of the fastest payback times in the industry. You can read more about the advantages of installing a UR10 industrial robot arm on the "UR robots benefit" page.

UR10 robot in short :
- Automate tasks up to 10 kgs (22 lbs)
- Reach radius of up to 1300 mm (51 in)
- Fast payback time
- Flexible deployment
- Easy to program
