Hushmand Afzar is Exclusive distributor of ROBOTIS products in Iran

Thanks to powerful servo motors of ROBOTIS (Dynamixel), ROBOTIS is a well known brand in Robocup competitions specially in Humanoid leagues. A wide Range of intelligent machines can be built using a single BIOLOID kit such as: autonomous exploration robots, quadrupeds, puppy robots, hexapod spider robots, dinosaur robots and bipedal humanoid robots. Students can learn the principles of robotics through these exciting activities.

BIOLOID STEM Kits

ROBOTIS STEM (Science, Technology, Engineering, Mathematics) is geared for a secondary-school robotis curriculum.
It introduces programming and other STEM concepts.
Robotics is the best Project-Based-Learning (PBL) environment for STEM Education.
STEM Standard
STEM Standard

STEM Standard Includes:

  • Dynamixel AX-12W (Robot Exclusive Actuator): 2pcs
  • CM-530 (Main Controller): 1pc
  • IR Sensor Array: 1pc
  • IR Sensor: 3pcs
  • Standard Frame Kit parts, Cables, Training book & etc.
Parts List

STEM Expansion
STEM Expansion

STEM Expansion Includes:

  • Dynamixel AX-12A (Robot Exclusive Actuator): 4pcs
  • IR Reciever: 1pc
  • IR Remote Control (changable to Zigbee): 1pc
  • Expansion Frame Kit parts, Cables, Training Book & etc.
Parts List

ROBOTIS-MINI Kit

ROBOTIS MINI is an adorable humanoid robot.
You can program its motions with downloadable R+ Task and R+ Motion software.
You can also control the robot via smartphone by downloading the R+ MINI app.
  • [NEW YORK TIMES] Selected as Best 10 Robots in 2014
  • Awarded the “Good Design” mark
  • Maintains compatibility with the 6mm grid OLLO [ROBOTIS DREAM] frame
  • Applies the small Dynamixel XL-320 for various motion functions
  • Offers the ROBOTIS MINI exclusive App (Touch, Gesture, Voice Recognition, Messenger)
  • Supports various functions for the user’s convenience (battery percentage, offset setting, etc)
  • Supports R+ Task and R+ Motion
  • Expandability capability with devices such as color Sensor, LED Module, etc

Bioloid Kits

Bioloid Premium Kit
Bioloid Premium Kit

ROBOTIS PREMIUM is the most famous Do-It-Yourself robot.
This kit can be used for school projects as well as advanced robot projects.

Merits:
- Excellent walking humanoid (Self-Adjusts posture while walking)
- Various sensors including Gyro, DMS and IR
- RC-100B(Remote Controller) is included (IR-default, Bluetooth included)
- C-style programming & motion teaching with RoboPlus S/W (USB interface included)
- Semitransparent humanoid skin for customization
- Digital packet communication with daisy chain topology
- Build various robots through versatile expansion mechanism

Premium Kit Includes:

  • Dynamixel AX-12A Digital Servo: 18pcs
  • CM-530 Robot Controller (based on ARM Mirocontroller): 1pc
    (5 x Dynamixel Ports, 6 x User Defined Ports, Sound Sensor, Buzzer, ...)
  • Absolute IR Distance Measurement Sensor (10cm~80cm): 1pc
  • Gyro Sensor (Angle meter in 2 axis): 1pc
  • IR Receiver (Remote Controller Receiver Module): 1pc
  • IR Sensors for Object Detecting: 2pcs
  • USB2Dynamixel Interface: 1pc
  • Zigbee Remote Control and IR: 1pc
  • Rechargeable Battery Pack (Lithium Polymer 11.1V 1000mAH): 1pc
  • SMPS & Charger: 1pc
  • Switching Adaptor: 1pc
  • CD of RoboPlus Software: 1pc
  • Frame Set, Cables & etc.

Bioloid مثال‌های کیت پریمیوم
Bioloid Comprehensive Kit
Bioloid Comprehensive Kit

Comprehensive Kit Includes:

  • Dynamixel AX-12A Digital Servo: 18pcs
  • Dynamixel AX-S1 Sensor Module: 1pc
  • CM-5 Controller including Battery: 1pc
  • SMPS Switching Adaptor: 1pc
  • Serial Cable for Programming CM-5: 1pc
  • Comprehensive Kit Quick Start Guide: 1pc
  • CD including Behavior Control Programmer, Motion Editor and Robot Terminal Software: 1pc
  • Comprehensive Kit Frame Set, Cables & etc.

Bioloid مثال‌های کیت پیشرفته
Bioloid Beginner Kit
Bioloid Beginner Kit

Beginner Kit Includes:

  • Dynamixel AX-12A Digital Servo: 4pcs
  • Dynamixel AX-S1 Sensor Module: 1pc
  • CM-5 Controller including Battery: 1pc
  • SMPS Switching Adaptor: 1pc
  • Serial Cable for Programming CM-5: 1pc
  • Beginner Kit Quick Start Guide: 1pc
  • CD including Behavior Control Programmer, Motion Editor and Robot Terminal Software: 1pc
  • Beginner Kit Frame Set, Cables & etc.

Bioloid GP Kit
Bioloid GP kit

ROBOTIS GP is a high-performance humanoid robot geared for racing, soccer, fighting, and other competitive activities.
With high performance actuator AX-18A and ultra light weighted aluminium frames, it can compete in many robot competitions without additional robot parts or separate accessories.

Merits:
- Top-notch humanoid armed with high performance actuator DYNAMIXEL AX-18A
- Ultra light weight and high strength of aluminum frames
- Powerful mobility including a direction switch while moving and fast walking
- Basic humanoid battle and soccer motions are provided
- Can adjust posture while walking with gyro sensor
- Includes a gripper set for mission completion
- Includes optional frames for waist twisting
- Includes wireless remote controller(IR-default, Bluetooth included)
- Includes a RoboPlus, an upgraded powerful S/W programming tool
- Digital packet communication and simple daisy chain connection

GP Kit Includes:

  • Dynamixel Digital Servo: 18pcs
    • AX-12A Servo: 8pcs
    • AX-18A Servo: 10pcs
  • CM-510 Robot Controller: 1pc
    (5 x Dynamixel Ports, 6 x User Defined Ports, Sound Sensor, Buzzer, ...)
  • Absolute IR Distance Measurement Sensor: 1pc
  • Gyro Sensor (Angular Velocity Measurement in 2 axis): 1pc
  • USB2Dynamixel Convetor: 1pc
  • Zigbee Remote Control and IR: 1pc
  • 11.1V 1000mAH Lithium Polymer Rechargable Battery: 1pc
  • Balance Battey Charger: 1pc
  • Complete Aluminum Frame Set
  • Frame Parts for Gripper
  • CD of RoboPlus Software: 1pc
  • Manual, Cables & etc.
  • Aluminum Bag

Accessories

CM-5 Robot Controller
 CM-5 Robot Controller

The CM-5 is a robot controller device that controls the TTL type Dynamixel series. Through the CM-5, you can operate the Dynamixel motors and read information from the sensors. The CM-5 also allows you to construct and program joint type robots.

User's Manual

CM-530 Controller
 CM-530 Controller

CM-530 controller has been distributed with Premium and STEM kit. It is similar to CM-5, though it can be connected to general I/Os(GPIO). This is the new version of CM-510 but its microcontroller is ARM Cortex STM32F103RE. and it can be connected to USB port directly.

User's Manual

CM-700 Controller
 CM-700 Controller

CM-700 is similar to CM-2 +, though it can be as an Interface with non-standard I/O's of type TTL and RS485 type Dynamixels.

User's Manual

OpenCM9.04 Controller
 OpenCM9.04 Controller

OpenCM9.04 is an inexpensive opensource Controller based on STM32F103CB (a 32 bit ARM Cortex-M3 type proccessor) with speed of 72Mhz. Using its programing environment that is similar to Arduino, the connection can be made between TTL dynamixels and other sensors and devices. The programing is possible with USB cable.

User's Manual

Opensource Files

OpenCM 485 Expansion Board
 OpenCM 485 Expansion Board

Using this module and installing OpenCM9.04 controller on it, TTL and RS485 type Dynamixels can be controlled and connected to OpenCM9.04.

User's Manual

USB2Dynamixel
USB to Dynamixel

The USB2Dynamixel is a device used to directly drive the dynamixel on a PC. The USB2Dynamixel is used by connecting to a USB port of a PC, and is equipped with 3p and 4p connectors to be connected with a variety of dynamixels.
In addition, the USB2Dynamixel can be used to transform a USB port into a serial port for a PC without a serial port such as a lap-top computer. This function can be used effectively when dynamixel exclusive controllers such as the CM-2, CM-2+ and CM-5 are connected to an UBS port or when the ZIG2Serial is connected to an USB port to control a robot by radio.

User's Manual

ZIG-100 Set
ZIG-100

ZIG-100 is a small module that has a built-in MCU and Zigbee IC, allowing UART communication using 2.4GHz frequency. Utilized as a PAN (Personal Area Network) Module, it replaces wired serial communication with more modern wireless characteristics.

User's Manual

ZIG-110 Set
ZIG-110

ZIG-110 Set includes ZIG-100 and ZIG-110 modules. ZIG-110 board can be installed on RC-100 and ZIG2Serial and CM-5, and ZIG-110 module can also be connected on CM-100 and CM-510 and CM-700.

ZIG2Serial
Zig to Serial

ZIG2Serial is a device to connect ZIG-100 to serial port (COM Port) of PC.
It can change TTL level signal of ZIG-100 to RS-232C level and it has button that can reset a ZIG-100 as manual form and status display LED.

BT-100/BT-110A Set
 BT-100/BT-110A Set

Using BT-100/BT-110A that includes 2 boards of bluetooth to serial, robots can be controlled by remote controls, or they can be connected to the computer by ZIG2Serial and the connection with robot can be created by cellphone bluetooth and other similar smart devices. BT-110A Set contains BT-110A and BT-100 boards. BT-110A board can be installed on RC-100A remote control and ZIG2Serial board, and BT-110A module can also be connected on CM-100A and CM-510 and CM-530 and CM-700.

User's Manual

BT-210 Module
 BT-210 Module

Using BT-210, the bluetooth to serial convertor module, robots can be connected to each other, and cellphone bluetooth and other smart devices and make connection with the robot. BT-210 can be connected to CM-100A, CM-510, CM-530, CM-700 and CM-900.

User's Manual

RC-100 and RC-100Z Remote Control
 RC-100 and RC-100Z Remote Control

RC-100 remote control is used for controlling the robot by Infrared. So wireless connection will be possible by connectiong IR recievers to controllers such as CM-100 and CM-510. Adding ZIG-100 and ZIG-110 to RC-100 remote control, Zigbee type wireless connetion with robot can be created. This set has been distributed as RC-100Z.

Dynamixel AX-S1
Dynamixel AX-S1

Infra-red Sensor: It is embedded with three directions infrared sensor, making it possible to detect left/center/right distance angle as well as the light.
Remocon Sensor: It has built-in remote control sensor in center, making it possible to transmit and receive infrared data between sensor modules.
Internal Microphone: It has built-in micro internal microphone, making it possible not only to detect current sound level and maximum loudness but also an ability to count the number of sounds, for instance, the numbers of handclapping
Buzzer: Built-in buzzer allows the playback of musical notes and other special note effects.

User's Manual

Gyro Sensor
Gyro Sensor

GS-12 sensor measure the angular velocity in two perpendicular axis.It can measure the angle in range of -300 to +300. It generate an analogue output for each axises.

User's Manual

RCS-10 Color Sensor
 RCS-10 Color Sensor

Using RCS-10 Color sensor, red, blue, green, yellow, white and black color can be recognize in 6 to 18 mm distance of the sensor. One of its usages is recognizing diffrent colors in rescue and AGV robots.

User's Manual

RMS-10 Magnetic Sensor
 RMS-10 Magnetic Sensor

Using RMS-10 Magnetic Sensor magnetic field can be recognize in the distance of 5mm and less.

User's Manual

PIR-10 Motion Detector
 PIR-10 Motion Detector

PIR Sensor is used for detecting motions. It can sens objects moving that are in its detecting interval. It can be conjoined to the robot using rivet of ROBOTIS DREAM or OLLO. Its motion detecting interval is between 20cm and 2m, and the angular limit is ±45deg.

User's Manual

TPS-10 Temprature Sensor
TPS-10 Temprature Sensor

TPS-10 Temprature sensor is for recognition the temprature changes. Considering its water proof feature (exept for its connector part), it can be use for recognition the changes of liquid temprature. It can be conjoined to the robot using rivet of ROBOTIS DREAM or OLLO kits. Its temprature detecting interval is between -20ºC and 120ºC.

User's Manual

Software

RoboPlus

RoboPlus is a free programming software for programming ROBOTIS products.
Easily program robots or make motions to make learning robotics more enjoyable!
  • RoboPlus Task: Create and download programs to operate the robot
  • RoboPlus Motion: Create and download robot motions
    (not supported by some products)
  • RoboPlus Manager: Configure and manage robot components
  • RoboPlus Terminal: Manage robot controllers (for advanced users)
  • Dynamixel Wizard: Manage DYNAMIXELs directly from a PC (for advanced users)

Embedded C

Professinal users that are familiar with microcontroller and microcontrollers programing concepts, can change the firmware of different ROBOTIS controllers, using various examples on the net and ROBOTIS website. WinAVR and AVR Studio are suitable applications to do this job.

Dynamixel SDK

Using this standard library, we can create a software that controls the Srevos and Dynamixel equipments by USB2Dynamixel convertor via computer's USB directly. It includes some samples in Java, Labview, Matlab, Python, Visual Basic, Visual C# and Visual C++ programming environments.

Zigbee SDK

Using this standard library, we can create a software that connect with other devices such as CM-5 controller using ZIG2Serial, ZIG-100 and ZIG-110. It includes some samples in Visual Basic, Visual C#, Visual C++ programming environments.

Third Party Accessories

RoBoard RB-110
RoBoard RB-110

RoBoard RB-110 is a powerful, light and portable computer planned for robotic usages particularly. Please visit RoBoard page to get more information about Module and its accessories.

User's Manual

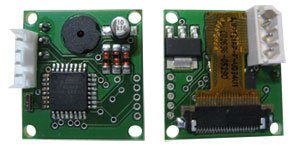

HAVIMO ver2.0
Embedded Vision Module for Bioloid
HAVIMO ver2.0

HAVIMO2 is the new version of HAVIMO Vision Module with higher image transfering speed. HAVIMO2 can be connected easily to Dynamixel buses and controllers such as CM-5 and CM-530, and computers via USB2Dynamixel convertor.

Features:

  • HV7131RP (the CMOS Internal camera) Features:
    • Resolution: 160x120px
    • Color space: 12 between YCrCb
    • Image Processing Rate: 19 frames per second
    • Accessable Registers
    • Saving Configuration in EEPROM to avoiding renewed configuration in every starting times
    • Optional Hue / Saturation
  • Image processing Feature Based on Color:
    • Interior Color Lookup Table, able for defining 256 objects
    • Display and Color Editing Tool for 3D
    • Increasing Online Color Area: Capability to find area up to 15 per frames
    • Image Compressing and adjustable Noise Filtering
    • Generating the raw image to fix or set the table
  • Supported Hardware:
    • TTL Serial
    • Half Duplex Serial for Dynamixel bus and same series up to 1 Mbps
    • Full Duplex Serial for RoboBuilder bus and same series up to 115200 bps
  • Supported Software:
    • RoboPlus
    • RBC Firmware
    • Direct Programming in C
Quick Start

CMUCAM
Embedded Vision Processor proper for Bioloid
CMUCAM3

You can use CMUCAM3, CMUCAM4 and CMUCAM5 as an image proccessor and the main robot controller. Please visit DEVANTECH page to get more information about Module and its accessories.

More Information

DYNMXL330
3-Axis Accelerometer for DYNAMIXEL
DYNMXL330

This module could measure the acceleration in three perpendicular axes using ADXL330 sensor. One of main advantages of this module is that it provides information in Dynamixel format. Therefore, it could be easily connected to different Robotis controllers and the acceleration data would be available for those controllers. DYNMXL330 could be also connected to PC through USB2Dynamixel Interface.
Using this module you can easily detect the robot fallings as well as its direction of fall.

DXL-I2C
Interface Module between DYNAMIXEL and I2C
DXL-I2C

DXL-I2C is a very useful interface module that connects dynamixel and I2C buses to each other. So Dynamixel based devices could connect and control the modules that communicate through I2C bus. Therefore, a lot of I2C sensors, drivers, controllers, modules and ... could be connected and controlled by ROBOTIS controllers like CM-530 and CM-700 or by PC through USB2Dynamixel interface. DXL-I2C is also compatible with RoboPlus programming environment. DXL-I2C could be connected to Ultrasonic Range Finders like SRF02 and SRF08, Compass Modules like CMPS03 and CMPS11, Thermal Sensors like TPA81, DC Motor Drivers like MD03 and MD22, RC Servo Controllers like SD21 and SD84, LCD Display Modules like LCD05, ... .

DXL-DRV4
4A DC Motor Driver for DYNAMIXEL
DXL-DRV4

Using DXL-DRV4, the velocity of a DC motor with the maximum current of 4A could be easily controlled by controllers which communicate through Dynamixel bus. So different DC motors could be connected and controlled by ROBOTIS controllers like CM-530 and CM-700 or by PC through USB2Dynamixel interface. DXL-DRV4 is also compatible with RoboPlus programming environment.

DXL-IO
I/O Module and RC Servo Controller for DYNAMIXEL
DXL-IO

Using DXL-IO module, Digital I/Os, Analogue inputs and RC Servos (with PWM interface) could be added to Controllers which communicate through Dynamixel bus. So different Sensors with Digital or Analogue outputs or Devices which receive commands through their Digital inputs or PWM Servo Motors could be connected and controlled by ROBOTIS controllers like CM-530 and CM-700 or by PC through USB2Dynamixel interface. DXL-IO is also compatible with RoboPlus programming environment.
